Affordability and Simplicity Delivered
- 2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
- Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

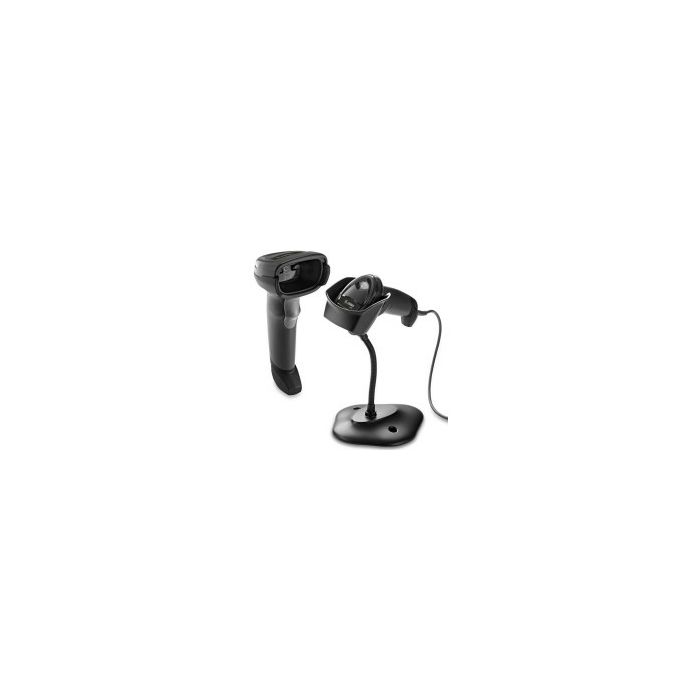

- But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the DS2208. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use, and management simplicity your business requires.

Features
- Instant decoding with PRZM intelligent imaging
- Unsurpassed scanning range
- Point-and-shoot scanning simplicity
- Patent pending technology for the most intuitive aiming
- Easiest pairing on the planet
- Unique direct decode indicator improves productivity
- On-the-fly switching between handheld and hands-free scanning
- Control your scanners from a smartphone, tablet or PC
- No-cost tools to meet advanced management and application development needs

Specifications
Dimensions:
* Corded DS2208: 16.5 cm H x 6.6 cm W x 9.9 cm D
* Presentation Cradle: 7.2 cm H x 9.4 cm W x 12.2 cm D
- Weight:
* DS2208: 161.6 g
* Presentation Cradle: 151 g
- Input Voltage Range: DS2208 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
- Current:
* Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical).(Note: Auto-Aim and Illumination on Acquiring Image)
* Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
* Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
- Color: Twilight Black
- Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM), 46XX over RS485
- Keyboard Support: Supports more than 90 international keyboards
- User Indicators: Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)

Performance Characteristics
- Motion Tolerance (Handheld): Up to 13 cm. per second for 13 mil UPC
- Swipe Speed (Hands-Free) Up to 76.2 cm. per second for 13 mil UPC
- Light Source: Aiming Pattern: Linear 624nm Amber LED
- Illumination: 645nm Super-Red LEDs
- Imager Field of View: 32.8° H x 24.8° V Nominal
- Image Sensor: 640 x 480 pixels
- Minimum Print Contrast: 25% minimum reflective difference
- Skew/Pitch/Roll Tolerance: +/- 65°; +/- 65°; 0-360°
- Minimum Element Resolution:
* Code 39 - 4.0 mil; Code 128 - 4.0 mil;
* Data Matrix - 6.0 mil; QR Code - 6.7 mil

User Environment
- Operating Temperature:
* DS2208 Imagers: 0.0° to 50.0° C
* Presentation Cradle: 0.0° to 40.0° C
- Storage Temperature: -40.0° to 70.0° C
- Humidity: 5% to 95% RH, non-condensing
- Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
- Tumble Specification: Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
- Environmental Sealing: IP52
- Electrostatic Discharge (ESD): DS2208: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
- Ambient Light Immunity: 0 to 10,000 Foot Candles/0 to 107,600 Lux

Regulatory
- Electrical Safety: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
- Environmental: RoHS EN 50581
- LED Safety: IEC 62471
- IT Emissions: EN 55032 (Class B)
- IT Immunity: EN 55024
- Harmonic Current Emissions: EN 61000-3-2
- Voltage Fluctuation and Flicker: EN 61000-3-3
- Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B
- Digital Appartus: ICES-003 Issue 6, Class B

Decode Capabilities
- Input Voltage Range: DS2208 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
- 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- 2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

Decode Ranges (Typical)
- Code 39:
* Resolution: 5 mil
* Near: .5cm
* Far: 15.2 cm.
- Code 128:
* Resolution: 5 mil
* Near: .1.5 cm.
* Far: 10.1 cm.
- PDF417:
* Resolution: 6.7 mil
* Near:2.0 cm
* Far: 14.5 cm.
- UPC:
* Resolution: 13 mil (100%)
* Near: 1.3 cm
* Far: 36.8 cm.
- Data Matrix:
* Resolution: 10 mil
* Near: 8 cm.
* Far: 15.7 cm.
- QR:
* Resolution: 20 mil
* Near: 0cm
* Far: 27.9 cm.
