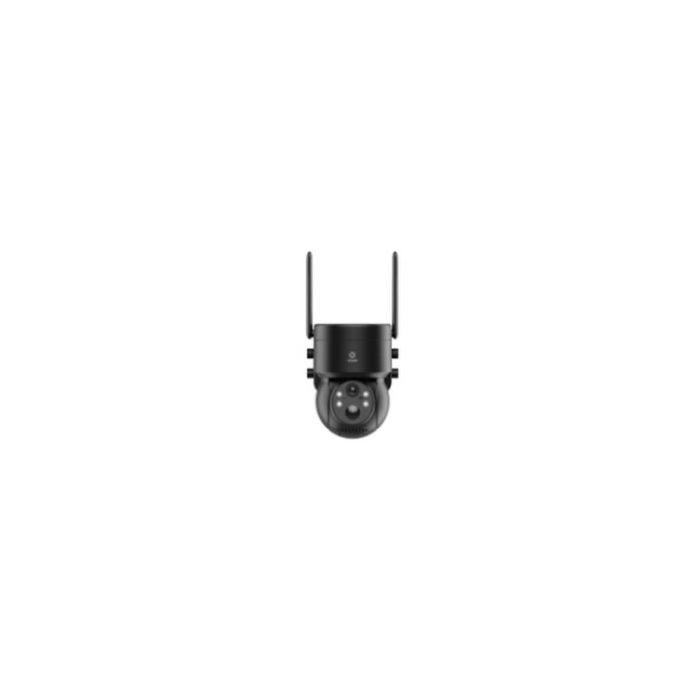

Full options outdoor camera kit by WOOX - superb quality built, picture quality and energy efficient green solar charging!
- Nothing more important than a safe feeling, thats why we introduce this next addition to our succesful WOOX outdoor camera range with new features as PTZ "pan tilt and zoom" camera. WOOX R3569 let you feel at ease all the time with full options at a great price.
If you are looking for a stylish high quality security outdoor camera kit that offers it all? WOOX R3569 is your right choice.

Weatherproof, UV resistance; IP65 certified
- The WOOX R3569 is IP65 certified which makes the R3569 WOOX outdoor security camera ideal for using outside and keeping recording in the ever-changing outdoor environment no matter rain or sunshine. UV resistance makes this R3569 outdoor camera ideal for guarding your home well even when the ultraviolet rays are particularly strong or the ambient temperature is between -20° and +60°C.

Wireless connection, battery
- The R3569 comes with a non-replacable rechargeable battery of 5200mAh which can work up to 3 months on a full charge. Charging from empty to full takes around 4 hours with the supplied micro USB charging cable that is included in the package. The WOOX Home app gives you a notification when the battery is nearly empty so you have time to recharge and make sure your security does not get timed out for too long, charging until the LED lights up and your R3569 is good to go again.

Green, energy saving charging
- Our R3569 kit comes including a 3 watt solar panel with an easy to install bracket and connection cable to the R3569 camera unit in order to keep it charged by solar lighting all the time, avoid extra energy use and charge by solar, it is energy saving and energy sufficient, lets keep it green together.

PTZ technology camera
- PTZ stands for Pan Tilt and Zoom. It is a camera used for surveillance which has remote directional and zoom controls. Panning and Tilting is the part of camera physically moving, while the zoom function is the movement of the lens changing its focal length and focus.


Two-Way Audio
- Listening and talking by using "WOOX Home" App anytime and anywhere. WOOX Home R3569 Cam Outdoor comes equipped with excellent two-way communication, letting you ask the courier to leave the package on the porch to complete unattended delivery, or help you scare away any would-be thieves.

Motion / Sound Detection
- Keep an eye on your property at all times. WOOX Home R3569 Cam Outdoor features motion and sound detection, live alerts hit your app pretty quickly, make it easy to deter and catch thieves or intruders.
To ensure extra security the R4252 also gives you the option to light up the 3 LED lights at the lens of the camera and it also includes a siren function that you can activate by several smart automations in the setting menu of the camera.

What a view
- WOOX R3569 Cam Outdoor can rotate by its bracket and together with the 120 degrees field of view, it provids you with the full protection you need. Equipped with a high-quality sensor and 3MP effective pixel streaming the R3569 provides crystal clear 1080P HD content.
Not only in daytime but also during the night times by three different Night vision levels: Infrared (black-white) - Regular color vision or Smart vision which is a brighter form of color night vision.

Features
- Weatherproof, UV resistance; IP65 certified
- Wireless connection, rechargeable batteries
- Unlimited energy efficient charging by included solar panel
- PTZ rotating technology
- Two-Way Audio
- Motion / Sound Detection
- Full HD 1080P
- 3MP high quality stream quality
- 3 different night visions: Infrared (black-white) / Color night / Smart night (bright color)
- Works with Amazon Alexa, Echoshow, Google Home, Nest Hub


Specifications
- Product Dimension: 64x62x90mm (camera), 47.8x47.8x77mm (bracket)
- Net Weight: 245g
- Power Cable Length: 1m
- Housing Material: PC (bracket: PC +ABS + iron)
- Housing: Black
- Hosing Flame Retardance: V-0
- Ingress Protection(IP): IP65
- Image Sensor: 1/2.8" 2Megapixel progressive CMOS
- Sensor Brand And Model: SMARTSENS, SC3336
- Main Chipset Brand And Model: Sigmastar, SSC333E
- Wi-Fi Chipset Brand And Model: WIFI-IC-HI3861L
- Lens Brand And Model: YT10135-3MP+IR1312
- Lens Length. 2.8mm
- Aperture: F2.0
- Speaker: 1W 8?
- Noise Reduction: 3D NR
- Antenna Gain (dBi): 1.5dB
- Power Supply. Battery and micro USB
- Power Supply by USB Directly without Battery: No, battery is required
- Working Power Consumption: 240mA
- Standby Power Consumption: 450uA
- Notification Image Resolution: HD(640*360)
- Live Stream Video Resolution: HD(2304*1296) / SD(640*360) @15fps
- Live Stream Effective Pixels: 3MP
- Live Stream Effective Pixels by HW or SW: Hardware straight out
- Angle of View(H/v/D): H108.4° V58.1° D128.5°
- Microphone Sensitive: -38dB
- Audio Input: Built in Mic
- Audio Output: Built in Speaker
- Video Compression: H.264 / H.265
- Audio Compression: G711
- Frame Rate: Main streaming 1024Kbps sub streaming 256Kbps
- Night Vision Mode: Full color and Black&white mode
- Number of infrared light: 4 pcs
- IR Distance: 10m
- IR On/Off Control: Auto/ Manual
- Number of white light: 4 pcs
- White Light Color Temperature: 6500K
- White Light Color Rendering index: 70
- White Light Luminous Flux: 140-150lm
- White Light Lighting Angle: 12°
- Lighting Distance: Distance 10 meters
- Wireless Standard: IEEE 802.11 b/g/n
- Wireless Frequency: 2.412 GHz ~ 2.474 GHz
- WiFi Encryption Protocol: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
- Working Temperature: -10?~50?
- Storage Temperature: -20?~60?
- Working Humidity: 20%-85%RH
- Pairing Method: QR code
- Two-way Talk: Support
- Motion Detection: Support
- WebRTC: Support
- Humanoid Filtering: Support
- IR CUT: Support
- Sound Alarm: Support
- Reset button: Reset button (hold and press 10 seconds)
- PIR Detection Angle: 120° (MAX)
- PIR Detection Distance: 8 meters
- PIR Detection sensitivity
* 5-6 meters
* 6-7 meters
* 8 meters
- PIR Report Times per Wake Up Period: 1
- Minium PIR Report Time Gap : 60s
- Local Storage SD Slot: Micro SD Slot (up to 128GB)
- Hot Swappable SD Card: Support
- Condition to trigger local storage: Motion detection
- Condition to trigger cloud storage: Motion detection
- Tuya Cloud Storage: Support
- Privacy Mode: Support
- Power LED Color: Red
- Status Indicator LED Color: Red, blue, green
- Product Status for different Status Indicator LED color: White light when working, default setting is off
- Alexa and Google Assistant: Support
- Battery Type: 18650
- Battery Capacity: 5200mAh
- Battery Accuracy: 10%
- How many times of triggers per day: 10 times, 2 months
- Abnormal Battery Voltage Level and the percentage: Voltage lower than 3.4V, battery less than 5%
- Battery charging time (Input DC 5V1A): 8 hours
- Battery protection : Built-in battery pack
- Solar Panel: Support
- Housing Material: ABS
- Does Solar Panel Include Battery: No
- Solar Panel Output Power: 3W
- The Length of Cable of Solar Panel: 2 meters
- Working Temperature: -20?~60?
- Storage Temperature: -20?~60?
- Working Humidity: ?60%
- Charging time for the camera: Depends on sunshine
- Ingress Protection(IP): IP65
- Solar Panel Net Weight: 0.296kg


Logistics data:
- Product Net weight: 445 gram
- Product size: 64x62x90mm (camera), 47.8x47.8x77mm (bracket)















Package includes:
- Smart Outdoor camera x 1
- Solar panel
- USB charging cable x 1
- User manual x 1
- Screw bag x 1
- Security sticker x 2
