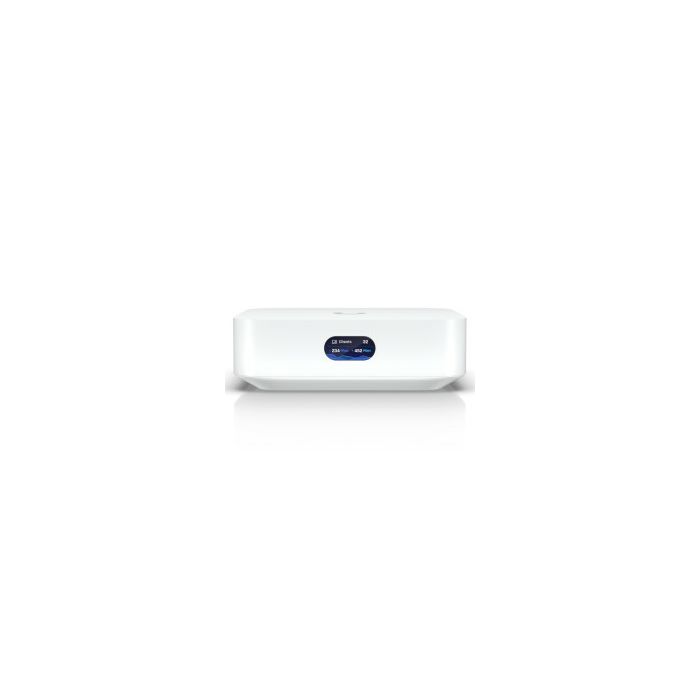

- Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.

Features
• Built-in WiFi 6 AP
• 140 m2 (1,500 ft2) single-unit coverage
• 50+ connected WiFi devices*
• (1) GbE RJ45 WAN port
• (1) GbE RJ45 LAN port to extend network
• 0.96" LCM status display
• Manages up to four additional UniFi Network devices when operated as a gateway
• Managed with UniFi Network 8.0.7 and later

Specifications
Mechanical
- Dimensions: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
- Weight: 302 g (10.7 oz)
- Enclosure material: Polycarbonate

Hardware
- Management interface
• Ethernet
• Bluetooth
- Networking interface
• LAN: (1) GbE RJ45 port
• WAN: (1) GbE RJ45 port
- Power method: USB type C (5V DC/3A)
- Max. power consumption: 10W
- Max. TX power
• 2.4 GHz: 22 dBm
• 5 GHz: 25 dBm
- MIMO
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- Throughput rate
• 2.4 GHz: 573.5 Mbps
• 5 GHz: 2.4 Gbps
- Antenna gain
• 2.4 GHz: 4 dBi
• 5 GHz: 5.15 dBi
- Antennas
• (2) Internal 2.4G/5G WiFi dual-band antenna
• (1) Internal 2.4G single-band BT antenna
- LCM display: 0.96" status display
- Button: Factory reset
- Ambient operating temperature: -10 to 45° C (14 to 113° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Gateway Features
- Performance: Internet quality and outage reporting
- Next-generation security:
• Application-aware firewall rules
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Full stateful firewall
- Advanced networking
• License-free SD-WAN
• WireGuard, L2TP and OpenVPN server
• OpenVPN client
• OpenVPN and IPsec site-to-site VPN
• One-click Teleport VPN
• Policy-based WAN and VPN routing
• DHCP relay
• Customizable DHCP server
• IGMP proxy
• IPv6 ISP support

Software
- WiFi standards: 802.11a/b/g/n/ac/ax
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID
• Console mode: 3 per band
• Standard AP: 8 per band
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 50+*
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).

Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b. 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Application Requirements
- UniFi Network: Version 8.0.7 and later
