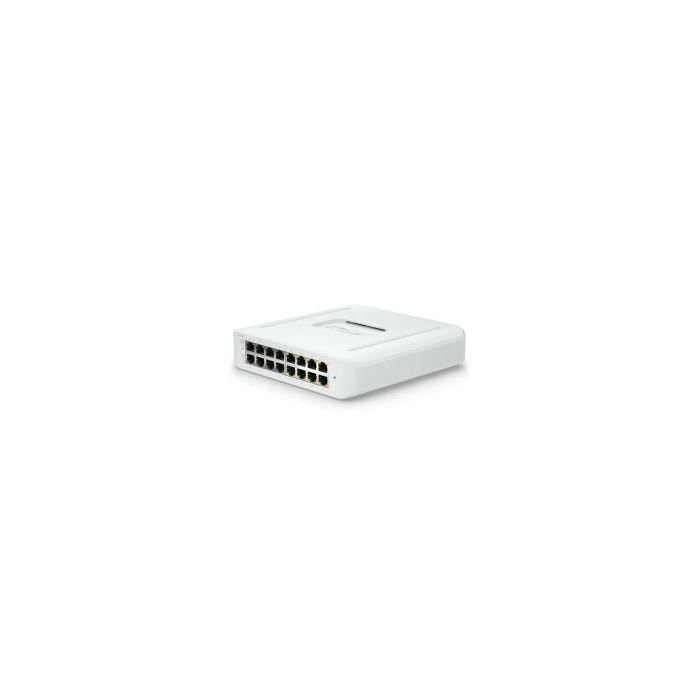

- A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app

Features
- (8) GbE, PoE+ RJ45 ports
- (8) GbE RJ45 ports
- 45W total PoE availability
- Managed with the UniFi Network application: Version 7.2.94 and later
- VLAN Support
- Port Aggregation (LAG)
- Spanning Tree Protocol (STP)
- Jumbo Frames
- Quality of Service (QoS)
- Advanced Logging

Specifications
Hardware
- Networking interface: (16) 10/100/1,000 MbE RJ45
- Management interface: Ethernet In-Band
- PoE interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking line rate: 16 Gbps
- Max. power consumption: 15W
- Power method: Universal AC input: 100—240V AC
- Power supply: Internal 60W AC/DC power supply
- Supported voltage range: 100—240V AC
- Max PoE+ wattage per port by PSE: 30W
- PoE budget: 45W
- Modes: SMB Layer 2 PoE GbE switch
- Operating temperature: -15 to 40° C (5 to 104° F)
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC

Mechanical
- Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
- Weight: 1.2 kg (2.65 lb)

LEDs
- System (1) Power: blue/white
- Flashing white: bootup in progress
- Flashing blue: firmware upgrading
- Steady white: factory defaults, awaiting adoption
- Steady blue: device is adopted
- Ethernet: Green: 1G
- Amber: 10/100 Mbps
- PoE: Amber: PoE/PoE+
