- Layer 2 switch with (24) GbE RJ45 ports and (2) 1G SFP ports.

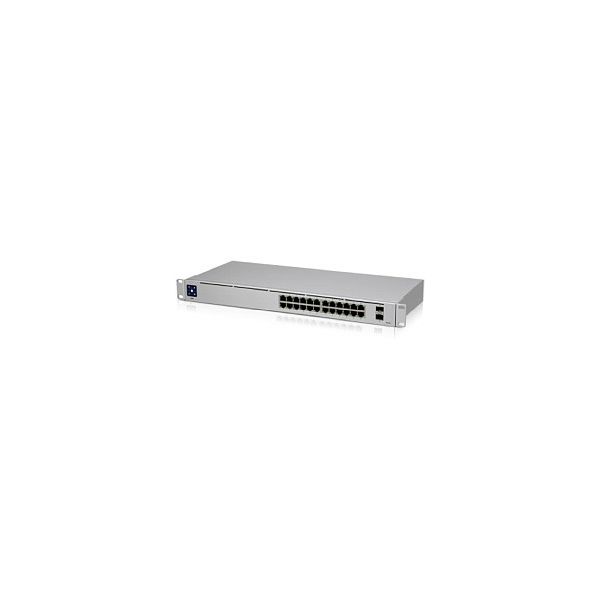

- The Switch 24 (USW 24) is a fully managed, fanless switch with (24) GbE RJ45 ports and (2) 1G SFP ports.
- The versatile USW 24 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network.
- The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
- This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features
- (24) GbE RJ45 ports
- (2) 1G SFP ports
- (1) 1.3" LCM color touchscreen with AR switch management
- Fanless, silent cooling
* Managed with the UniFi Network application: Version 5.12.32 and later

Works with the UniFi Network Application
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.

Specifications
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Max. Power Consumption: 25W
- Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
- Power Supply: AC/DC, Internal, 36W
- Networking Interfaces: 24× 10/100/1000 Mbps Ethernet RJ45 Ports, 2× 1 Gbps SFP Ports
- Management Interface: Ethernet In-Band
- Modes: SMB Layer 2 Gigabit Ethernet Switch
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 90% Noncondensing
- Certifications: CE, FCC, IC

LEDs
- System
* (1) Bootup Animation: Bootup in Progress
* Firmware Upgrade Icon: Firmware Upgrading
* Steady White: Factory Defaults, Awaiting Adoption
* Steady Blue: Device is Adopted
- Ethernet: Green: 1G, Amber: 10/100 Mbps
- SFP: Green: 1G
