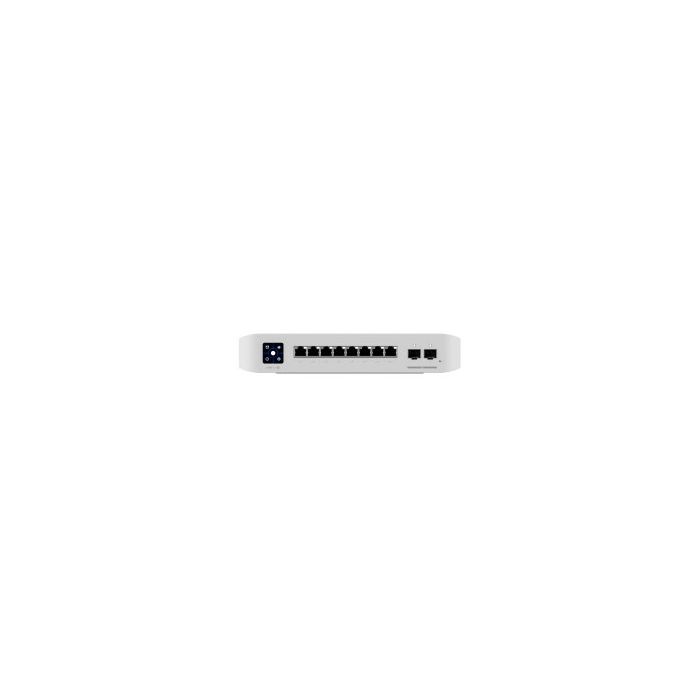

- An 8-port, Layer 3 switch with PoE+ and PoE++ output.

Features
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W total PoE availability

Specifications
Mechanical
- Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
- Weight: 2.1 kg (4.6 lb)
- Enclosure materials: Polycarbonate, metal
- Mount material: Polycarbonate

Hardware
- Management interface: Ethernet In-Band
- Networking interface
• (8) GbE RJ45 ports
• (2) 10G SFP+ ports
- PoE interface
• (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
- Total non-blocking throughput: 28 Gbps
- Switching capacity: 56 Gbps
- Power method: Universal input, 100—240V AC, 2A Max.
- Power supply: AC/DC, internal
- Supported voltage range: 100—240V AC
- Max. power consumption: 30W (Excluding PoE output)
- Total available PoE: 120W
- Max. PoE wattage per port by PSE
• PoE: 15W
• PoE+: 30W
• PoE++: 60W
- Voltage range PoE mode
• PoE: 44—57V
• PoE+: 50—57V
• PoE++: 50—57V
- LCM display: (1) 1.3" touchscreen
- LEDs: RJ45 ports: link/activity
- Button: Factory reset
- Ambient operating temperature: -5 to 45° C (23 to 113° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC

Switching Features
- Layer 2 features
• IGMP snooping
• STP / RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast / broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping / guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC
• Device isolation with ACLs
- Layer 3 features
• DHCP for locally-managed networks
• DHCP relay
• Inter-VLAN routing between networks on same switch
• Static routing between local networks

Application Requirements
- UniFi Network: Version 7.5.176 and later
