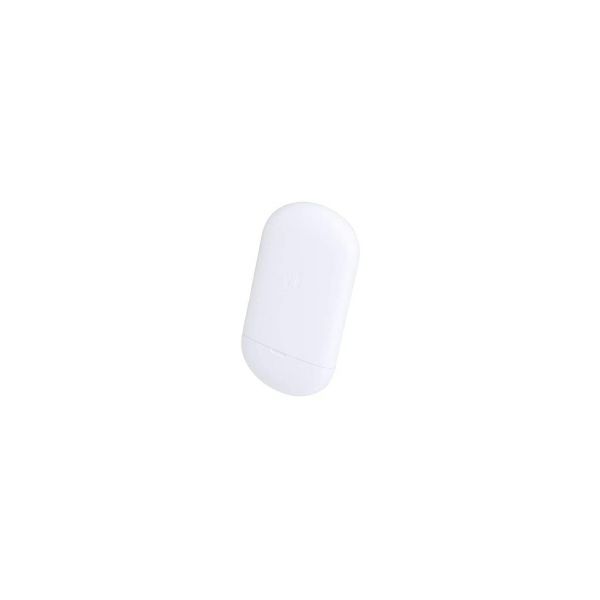

- The indoor/outdoor NanoStation AC loco are compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management

SLEEK INDUSTRIAL DESIGN
- The NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry

MANAGEMENT Wi-Fi RADIO
- Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

IMPROVED SURGE PROTECTION
- The NanoStation AC loco feature enhanced protection against ESD events

NOW WITH airOS 8
- airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability

Specifications
- Power Supply: 24V, 0.3A Gigabit PoE Supply
* Not included. Recommended PoE Adapter: POE-24-12W-G
- Max. Power Consumption: 7W
- Power Method: Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)
- Gain: 13 dBi
- Networking Interface: 10/100/1000 Mbps Ethernet Port
- Channel Bandwidths: 10/20/30/40/50/60/80 MHz
- Processor Specs: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2
- Cross-pol Isolation: 20 dB Minimum
- Max. VSWR: 1.8:1
- Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- LEDs: (1) Power
- Mounting: Pole-Mount (Kit Included)
- Operating Temperature: -40C to 70C (-40F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- RoHS Compliance: Yes
- ESD/EMP Protection: +/-24kV Contact/Air
- Shock & Vibration: ETSI300-019-1.4
- Certifications: CE, FCC, IC
- Operating Frequency: 5150 - 5875 MHz
- Management Radio: 2412 - 2472 MHz
- Dimensions: 179×77.5×59.1 mm
- Weight: 180 g
