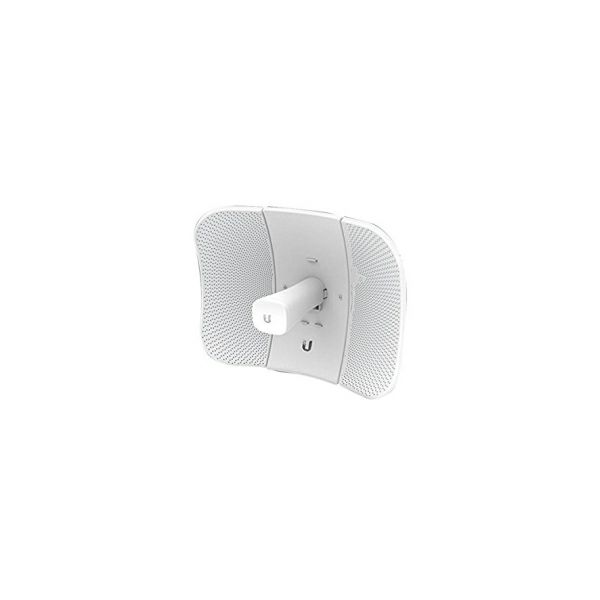

- The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing

MANAGEMENT Wi-Fi RADIO
- The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

IMPROVED MOUNTING AND SURGE PROTECTION
- Featuring enhanced protection against ESD events, the LiteBeam AC offers a more robust mount with separate azimuth and elevation adjustments

NOW WITH airOS 8 AND airVIEW
- airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability

HIGH-GAIN, DIRECTIONAL, 2x2 MIMO ANTENNA
- The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity

BREAKTHROUGH INDUSTRIAL DESIGN
- Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds - no tools needed
- Only a single wrench is required for pole-mounting

COMPACT IN SIZE, LIGHT IN WEIGHT
- A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics

Specifications
- Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 7W
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Supported Voltage Range: 24V +/-10%
- Gain: 23 dBi
- Networking Interface: (1) 10/100/1000 Ethernet Port
- Processor: MIPS 74Kc
- Memory: 64MB DDR2
- LEDs: Power, Ethernet
- Channel Sizes:
* PtP Mode: 10/20/30/40/50/60/80 MHz
* PtMP Mode: 10/20/30/40 MHz
- Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
- Mounting: Pole-Mounting Kit (Included)
- Wind Loading: 275 N @ 200 km/h (61.8 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection: +/-24 kV Contact / Air
- Operating Temperature: -40C to 70C (-40F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- Certifications: CE, FCC, IC
- Operating Frequency: 5150 - 5875 MHz
- Management Radio: 2412 - 2472 MHz
- Dimensions: 358×271.95×272.5 mm
- Weight:
* Without Mount: 800 g
* With Mount: 980 g
