- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment
- Easy Installation: Simple mounting design for easy attachment to a wall or ceiling
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set

Specifications
HARDWARE FEATURES
- Interface: 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
- Button: Reset
- Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 2.8 W
- Dimensions: 189.4×172.3×29.5 mm
- Antenna Type: Internal 2× 4 dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 - 2.4835 GHz
- Signal Rate:
* 11n: Up to 300 Mbps (dynamic)
* 11g: Up to 54 Mbps (dynamic)
* 11b: Up to 11 Mbps (dynamic)
- Reception Sensitivity:
* 300M: -71 dBm@10% PER
* 150M: -75 dBm@10% PER
* 54M: -78 dBm@10% PER
* 11M: -93 dBm@8% PER
* 6M: -92 dBm@10% PER
* 1M: -96 dBm@8% PER
- Wireless Functions:
* Multiple SSIDs (Up to 8 SSIDs)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless MAC Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Transmission Power:
* CE: <19 dBm (EIRP)
* FCC: <21 dBm

MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- Management VLAN: Yes

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:

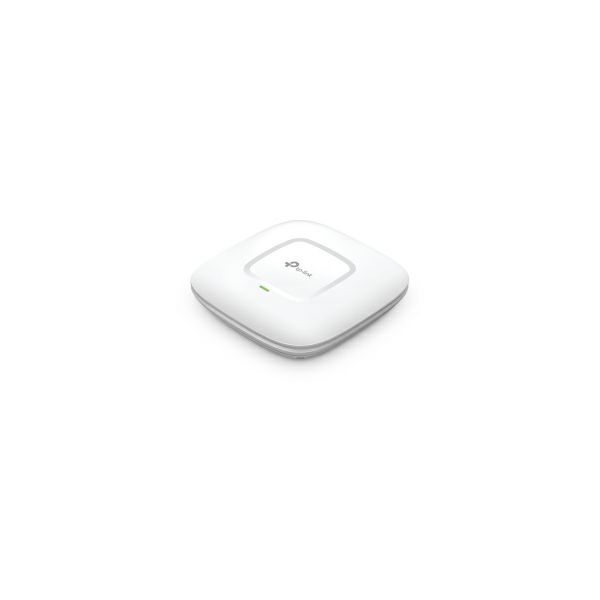

* 300Mbps Wireless N Ceiling Mount Access Point EAP110
* Passive PoE Adapter
* Power Cord
* Mounting Kits
* Installation Guide
- System Requirements: Microsoft Windows 10/8/7/Vista/XP
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% RH non-condensing
* Storage Humidity: 5% - 90% RH non-condensing
