Features
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds -
- Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
- Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
- Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage-
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Specifications
HARDWARE FEATURES
- Dimensions: 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)
- Antenna Type: 2× High-Gain Tri-Band Antennas

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/b/g/n/ac/ax

WLAN Signal Rate
- 6 GHz:
* 11ax: Up tp 2402Mbps

- 5 GHz:
* 11ax: Up to 2402 Mbps(dynamic)
* 11ac: Up to 1732 Mbps(dynamic)
* 11n: Up to 300 Mbps(dynamic)
* 11a: Up to 54 Mbps(dynamic)

- 2.4 GHz:
* 11ax: Up to 574 Mbps(dynamic)
* 11n: Up to 400 Mbps(dynamic)
* 11g: Up to 54 Mbps(dynamic)
* 11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity
- 6 GHz:
* 11ax HE160 MCS0:-86
* 11ax HE160 MCS11:-56

- 5 GHz:
* 11ax HE80 MCS0: -90 dBm
* 11ax HE80 MCS11: -59 dBm
* 11a 54Mbps: -77 dBm
* 11ac VHT80 MCS0: -92dBm
* 11ac VHT80 MCS9: -64dBm

- 2.4 GHz:
* 11ax HE40 MCS0: -91 dBm
* 11ax HE40 MCS11: -60 dBm
* 11g 54Mbps: -76 dBm
* 11n HT40 MCS7: -72dBm

- WLAN Transmit Power
* 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
* 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
* 6 GHz: 12dBm(FCC)
- WLAN Modes: Infrastructure mode
- Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents:

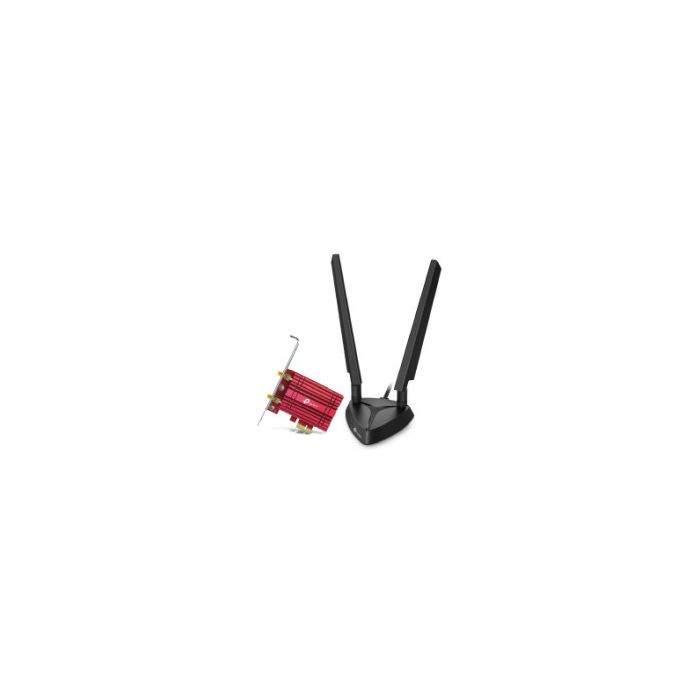

* Archer TXE75E
* Magnetized Antenna Base with 1m RF Cable
* 2× High-Gain Antennas
* Low-Profile Bracket
* Bluetooth Header Cable
* Quick Installation Guide
* Resource CD
- System Requirements: Supported operating systems include Windows 11
- Environment: Operating Temperature: 0?~40? (32? ~104?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
