- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

HARDWARE FEATURES
- Interface: Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE)
- Button: Reset
- Power Supply: 802.3af PoE and passive PoE
- Power Consumption: 10.5 W
- Dimensions: 205.5×181.5×37.1 mm
- Antenna Type:
* 3 Internal Omni
* 2.4GHz: 4dBi
* 5GHz: 5dBi
- Mounting: Ceiling /Wall Mounting (Kits included)
- Physical Security Lock: Yes
- Hardware Watch Dog: Yes

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
* 5GHz:Up to 867Mbps
* 2.4GHz:Up to 450Mbps
- Wireless Functions:
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Band Steering
* Load Balance
* MU-MIMO
* Airtime Fairness
* Beamforming
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
- Transmission Power:
* CE:
<20dBm (2.4GHz,EIRP)
<23dBm (5GHz,EIRP)
* FCC:
<24dBm (2.4GHz)
<22dBm (5GHz)

MANAGEMENT
- EAP Controller Software: Yes
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes

OTHERS
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP/Vista/7/8/10, Linux
- Environment:
* Operating Temperature: 0C - 60C (32F - 144F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Package Contents:

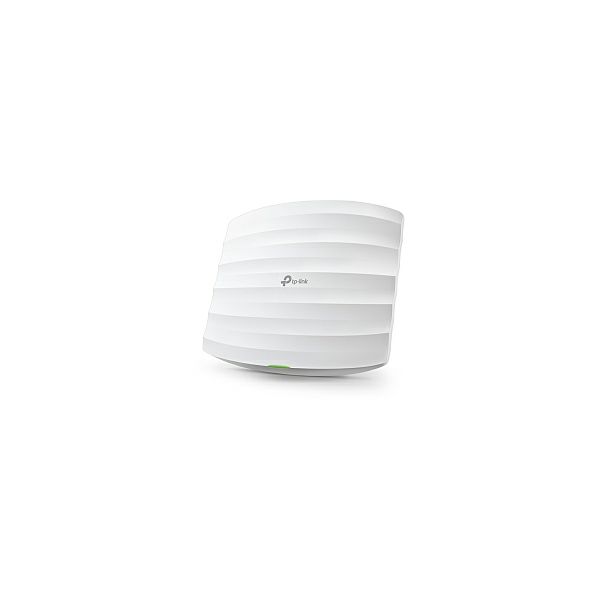

* AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
* Passive PoE Adapter
* Power Cord
* Mounting Kits
* Installation Guide
