WHAT THIS PRODUCT DOES

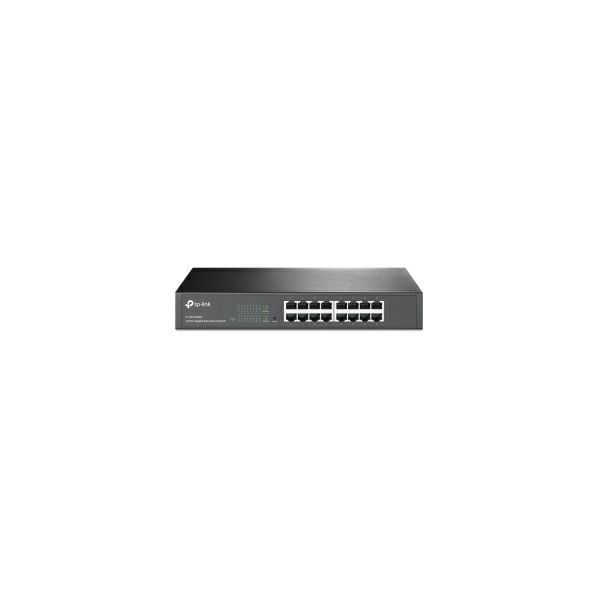

- The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management
- Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features
- To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free
- Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save power consumption, making it an eco-friendly solution for your business network

Features/b>
- 16 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Green technology reduces power consumption
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration

Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
* 16 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (W×D×H): (294×180×44 mm
- Mounting: Rack Mountable
- Max Power Consumption: 10.22W (220V/50Hz)
- Max Heat Dissipation: 34.52 BTU/h

PERFORMANCE
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.8Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 10KB

SOFTWARE FEATURES
- Quality of Service:
* Support Port-based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG1016DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
