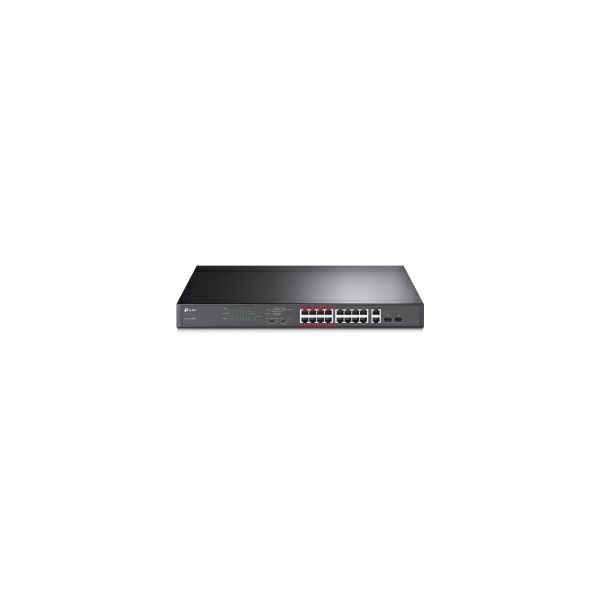

EASY TO USE PoE SWITCH WITH INNOVATIVE DESIGN
- Up To 250m Data and Power Transmission for Surveillance

HIGH PoE POWER BUDGET
- TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port
- The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems

UP TO 250m TRANSMISSION FOR SURVEILLANCE
- TL-SL1218MP is a special designed PoE switch for IP surveillance applications
- PoE switch makes surveillance installation simpler, safer and less expensive
- With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage

VIDEO QUALITY GUARANTEED
- To guarantee the quality of sensitive applications like video monitor, TL-SL12128MP offers higher priority options for those IPC connected ports

Features
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed

Specificationsy
HARDWARE FEATURES
- Interface:
* 16× PoE+ 10/100Mbps RJ45 Ports
* 2× 10/100/1000Mbps RJ45 Ports
* 2× Combo Gigabit SFP Slots
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max.100m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100m)
** EIA/TIA-568 100Ohm STP (max. 100m)
* 1000BASE-X MMF, SMF
- Fan Quantity: 2 Fans
- Power Supply: 100-240V AC, 50/60 Hz
- Backup Bandwidth: 7.2 Gbps
- PoE+ Ports(RJ45):
* Standard: 802.3at/802.3af compliant
* PoE Ports: Port1- Port16
* PoE Power Budget: 192W
- Mac Address Table: 8K
- Dimensions (W×D×H): 440×180×44 mm
- Max Power Consumption:
* 18.73 W (220/50Hz. no PD connected)
* 217.22 W (220/50Hz with 192W PD connected)
- Max Heat Dissipation:
* 63.89 BTU/h (no PD connected)
* 741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES
- Advanced Features:
* Compatible With IEEE 802.3at/af Compliant PDs
* Port Priority Mode
* Extend Mode (Up to 250m PoE power supply and data transmission)
* Mac Address Auto-Learning And Auto-Aging
* IEEE802.3x Flow Control
- Transmission Method: Store-And-Forward

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
