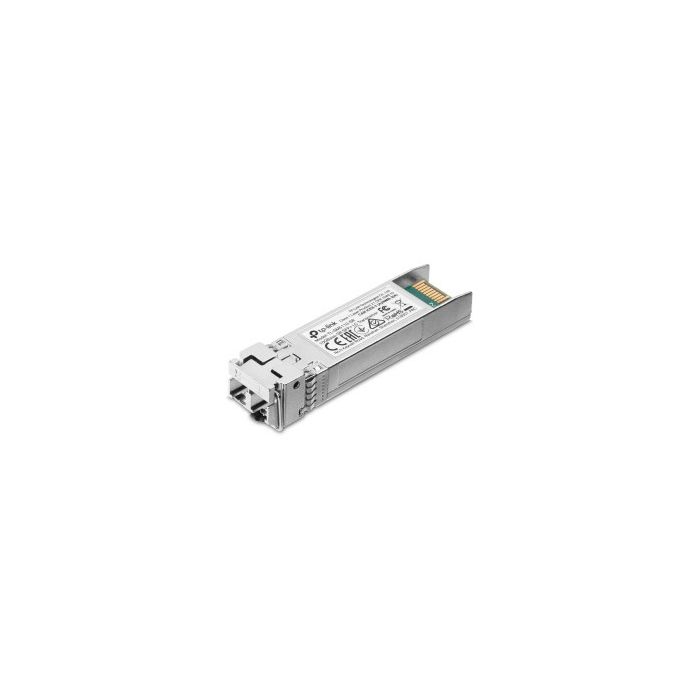

- The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver.
It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Features
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Specifications
PACKAGE CONTENTS
- Package Contents
* 10G SFP+ Module TL-SM5110-SR
* Installation Guide

HARDWARE FEATURES
- DDM: Yes
- SFP-MSA: Yes
- Hot Swappable: Yes

TRANSCEIVER
- Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
- Wave Length: 850nm
- Power Supply: 3.3V
- Fiber Type: 50/125um or 62.5/125um Multi-mode
- Max. Cable Length: 300m (OM3)
- Data Rate: 10Gbps
- Port Type: LC/UPC
- Safety & Emission: FCC, CE
- Environment: Operating Temperature: 0–70 ? (32–158 ?)
- Storage Temperature: -40–80 ? (-40–176 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
