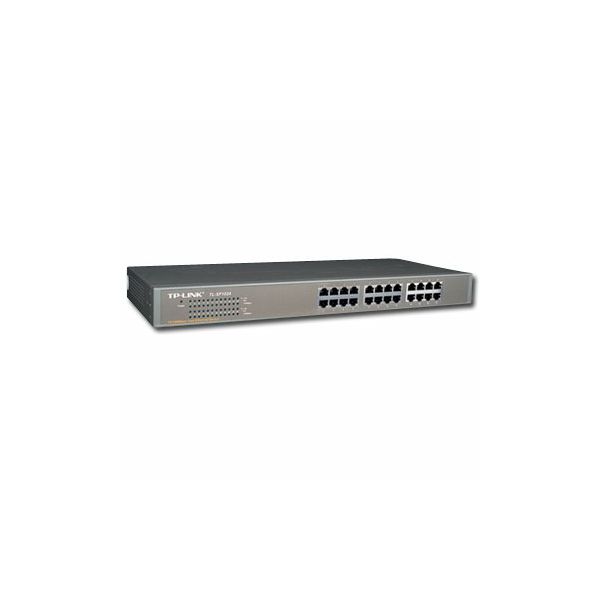

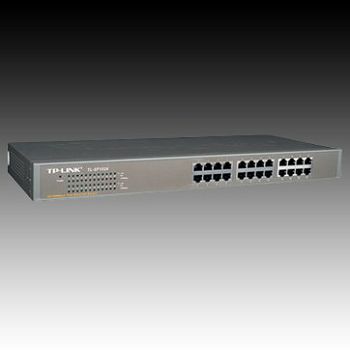

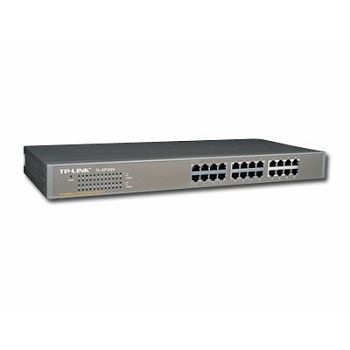

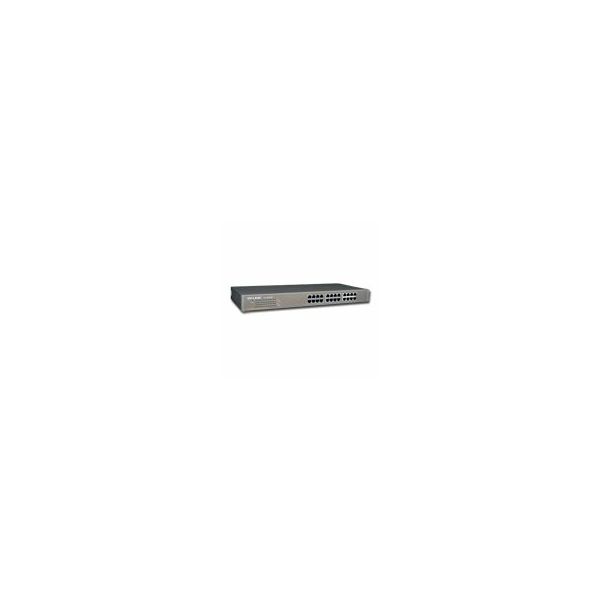

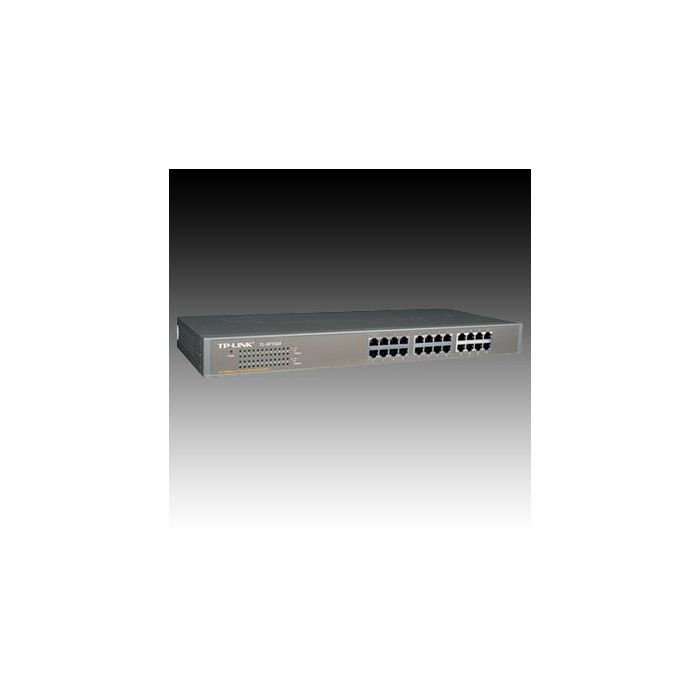

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub´s collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.
Certifications: FCC, CE
, Data Transmission: Full Duplex
, Depth (mm): 440 mm
, Device Location: External
, Ethernet 10Base-T/100Base-TX Port Connector Type: RJ-45
, Ethernet 10Base-T/100Base-TX Port Quantity: 24
, External Color: Gray
, Height (mm): 180 mm
, MAC Address Table Size: 8K
, Maximum Input Frequency: 60 Hz
, Maximum Operating Ambient Temperature: 40 °C
, Maximum Operating Humidity: 90 %
, Minimum Input Frequency: 50 Hz
, Minimum Operating Ambient Temperature: 0 °C
, Minimum Operating Humidity: 10 %
, Mounting Capability: Desktop/Wallmount
, Network/Transport Protocol: TCP/IP CSMA/CD
, Networking Compliant Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x
, Networking Features: MDI/MDI-X switch Unmanaged
, Nominal Weight: 1.6 kg
, Number of Ports: 24 x 10Base-T/100Base-TX (Ethernet/Fast Ethernet)
, Pack Height (mm): 75 mm
, Pack Length (mm): 500 mm
, Pack Weight Brutto (kg): 2.2 kg
, Pack Width (mm): 220 mm
, Package Type: Retail
, Packs in Box: 6
, Pieces in pack: 1
, Power Device Location: External
, Switching Method: Store and Forward
, Total Number of Ports: 24
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 44 mm
