Key Features

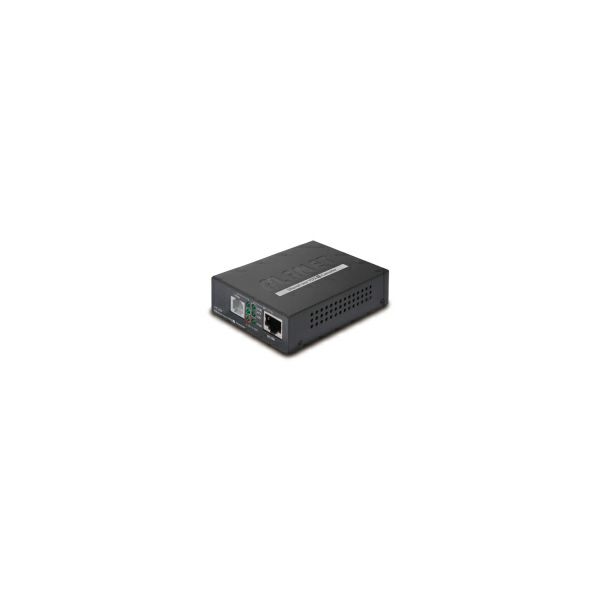

- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
- One box design, CO / CPE selectable via DIP Switch
- Defines symmetric band plan for the transmission of upstream and downstream signals
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
- DMT (Discrete Multi-Tone) line coding
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
- One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
- VDSL2 stand-alone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply as Plug-and-Play)
- Selectable target profile and target SNR margin
- Supports extensive LED indicators for network diagnosis
- Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R)
- Compact in size, easy installation

Hardware Specification
- Ports:
* 10/100Base-TX - 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
* VDSL - 1 RJ-11, female Phone Jack
* PHONE - Additional Splitter for POST connection
- DIP Switch & Functionality:
* 4 position DIP switch
* CO / CPE mode select
* Selectable fast and interleaved mode
* Selectable target 17a / 30a profiles
* Selectable target SNR mode
- Encoding:
* VDSL-DMT (ITU-T G.993.1 VDSL; ITU-T G.997.1; ITU-T G.993.2 VDSL2 (Profile 17a/30a Support))
- LED Indicators
* One Power
* 3 for RJ-11/VDSL2
* 2 for per RJ-45 10/100Base-TX port
- Cabling:
* Ethernet: 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft); 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
* VDSL: Twisted-pair telephone wires (AWG24 or better) up to 1.4km
- Performance (Downstream / Upstream):
* 17a profile
300m -> 86/65Mbps
400m -> 86/52Mbps
600m -> 81/36Mbps
800m -> 72/19Mbps
1000m -> 60/9Mbps
1200m -> 59/6Mbps
1400m -> 50/2Mbps
* 30a profile
300m -> 100/100Mbps
400m -> 90/90Mbps
600m -> 61/40Mbps
800m -> 54/8Mbps
- Power Requirement: 5V DC, 2A
- Power Consumption: 6.6 Watts / 22 BTU
- Dimension (W×D×H): 97×70×26 mm
- Weight: 199g
Environment
- Operating:
* Temperature: 0 - 50 Degree C
* Relative Humidity: 10 - 90% (non-condensing)
- Storage:
* Temperature: -10 - 70 Degree C
* Relative Humidity: 10 - 90% (non-condensing)
Switch Specification
- Switch Processing Scheme: Store-and-Forward
- Address Table: 1K entries
- Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
- Switch fabric: 0.2Gbps
- Throughput (packet per second): 0.14Mpps
- Network cables:
* 10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.); EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
- Regulation Compliance: FCC Part 15 Class A, CE
- Standards Compliance:
* IEEE 802.3 10Base-T
* IEEE 802.3u 100Base-TX
* ITU-T: G.993.1 (VDSL); G.997.1; G.993.2 VDSL2 (Profile 17a/30a)
