Hardware Specifications

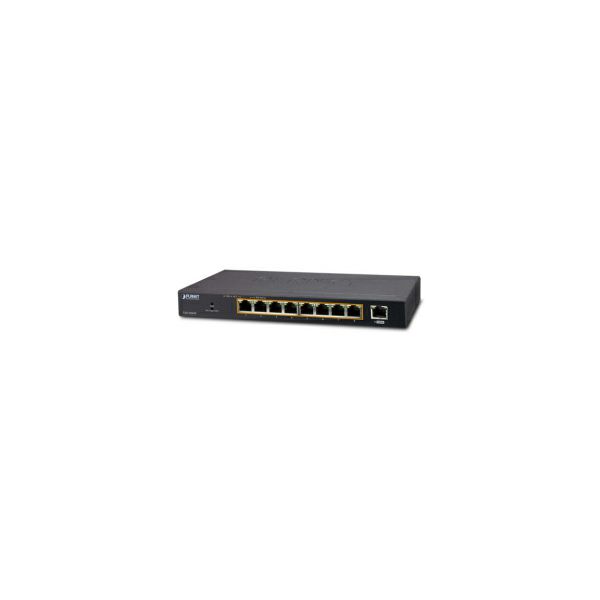

- Network Connector: 9-Port RJ45 for 10/100/1000BASE-T
- PoE Inject Port: 8-Port with 802.3af/802.3at PoE injector function
- LED Display:
* System: Power (Green), PoE Usage 100% (Green)
* Per PoE port: PoE (Green), port 1 to port 8; LNK/ACT (Orange), port 1 to port 9
- Switch Architecture: Store and forward
- MAC Address Table: 4K MAC address table with auto learning function
- Data Buffer: 192 KB
- Switch Fabric: 18Gbps
- Switch Throughput: 13.3Mpps@64bytes
- Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
- Power Requirements: DC 51V, 2A max.
- Power Consumption: 100 watts/341BTU
- Dimensions (W×D×H): 103×235×27 mm
- Weight: 628 g
Power over Ethernet
- PoE Standard: IEEE 802.3af/802.3at Power over Ethernet PSE
- PoE Power Supply Type: End-Span
- PoE Power Output:
* Per port 51V DC, 350mA. max. 15.4 watts
* Per port 51V DC, 600mA. max. 30 watts
- Power Pin Assignment: 1/2(+), 3/6(-)
- PoE Power Budget: 100 watts
- Max. Number of Class 2 PDs: 8
- Max. Number of Class 3 PDs: 7
- Max. Number of Class 4 PDs: 3
Standard Conformance
- Standard Compliance:
* EEE 802.3
* IEEE 802.3u
* IEEE 802.3ab
* IEEE 802.3x
* IEEE 802.3af
* IEEE 802.3at
* Ethernet
* Fast Ethernet
* Gigabit Ethernet
* Flow Control
* Power over Ethernet
* Power over Ethernet Plus
Environment
- Operating Environment: 0 - 50 degrees C
- Storage Environment: -10 - 70 degrees C
- Operating Humidity: 5-95%, relative humidity (non-condensing)
- Storage Humidity: 5-95%, relative humidity (non-condensing)
