- Need a nice-looking access point that wont get in your way?
- Or perhaps youre managing the network in a crowded place and dont want everyone to have physical access to the device?
- Either way - ceiling is the answer!

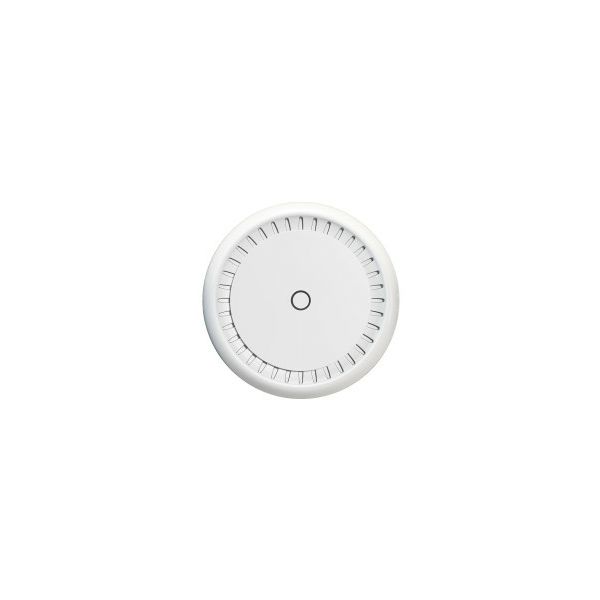

- The device itself is pretty sleek - the low profile attracts less attention than a smoke detector
- Your clients, guests, or colleagues wont even notice it
- But they will definitely notice the blazing fast wireless connection all across the premises
- The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector
- These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
- The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you dont have to worry about the placement of the device so much
- Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
- Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port

Specifications
- Architecture: ARM 32bit
- CPU: IPQ-4018
- CPU core count: 4
- CPU nominal frequency: 716 MHz
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 100000 hours at 25C
- Tested ambient temperature: -40C to 70C
- IPsec hardware acceleration: Yes

WIRELESS CAPABILITIES
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 6
- Wireless 2.4 GHz chip model: IPQ-4018
- Wireless 2.4 GHz generation: Wi-Fi 4
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 5.5
- Wireless 5 GHz chip model: IPQ-4018
- Wireless 5 GHz generation: Wi-Fi 5
- AC speed: AC1200

ETHERNET
- 10/100/1000 Ethernet ports: 2
- Number of 1G Ethernet ports with PoE-out: 1

POWERING
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 24 W
- Max power consumption without attachments: 11 W
- FAN count: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V

PoE-OUT
- PoE-out ports: Ether2
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 500 mA
- Max out per port output (input 30-57 V): 330 mA
- Max total out (A): 500 mA

CERTIFICATION & APPROVALS
- Certification: CE, FCC, IC, EAC, ROHS

OTHER
- Mode button: Yes

INCLUDED PARTS
- 24V 1.2A power adapter
- Ceiling mount
- Gigabit PoE injector
- K-81 fastening set
