- A powerful ceiling access point that offers true Wi-Fi 6 mobility for your outdoor business - now with a CAT12 LTE modem!

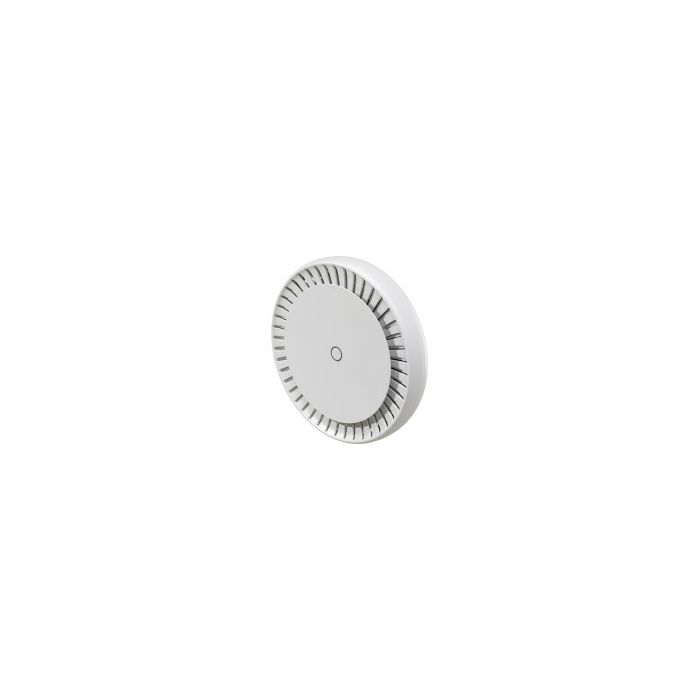

cAP LTE12 ax
- When it comes to providing reliable wireless connectivity in busy business environments, you need a solution that is both powerful and discreet. Whether you’re running an open-air pop-up store, a festival food stand, or a cozy coffee shop in the park, you need a device that can withstand the challenges of busy, high-traffic areas. You need cAP LTE12 ax – with its fast, reliable mobile internet and incredible Wi-Fi 6 coverage for you and your clients!

Elevate Your Connectivity: Literally and Figuratively
- In bustling high-traffic spaces, traditional access points can face numerous obstacles - devices get knocked over, misplaced, or even stolen. The cAP offers a simple yet effective solution: mount your access point on the ceiling. Not only does this method physically elevate the device, but it also ensures optimal signal distribution, minimizes interference from obstacles, and reduces the risk of theft. Also, you’ll have fewer cables and devices in your workspace to worry about – it’s a win-win scenario!

More Than Just an Access Point
- With a powerful quad-core ARM CPU running at 1.8 GHz, a gigabyte of RAM, and the extremely flexible RouterOS v7 at its core, the cAP LTE12 ax is far more than just a simple access point. It offers a range of advanced features, including:
• Complex firewall rules
• IPsec hardware encryption and Wireguard support
• Advanced routing and multiple VPN tunnels
• Support for remote work and file-sharing
• Even some light BGP action!
- This makes it an ideal solution for businesses that require secure, high-performance mobile connectivity in challenging environments.

Unstoppable 802.11ax (Wi-Fi 6) Radio and Improved Security
- With Wi-Fi 6, you can utilize the full potential of the speedy CAT12 600 Mbps LTE modem. We’re looking at up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum compared to previous generations. Additionally, Wi-Fi 6 offers significantly improved energy efficiency and security with OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection. These features help prevent attacks like brute-forcing and deauthentication.
- If you have multiple access points over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal... seamlessly!

PoE and Effortless Management
- The cAP ax makes your office network installation and maintenance easier with PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifi-qcom CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.

Specifications
- Product code: cAPGi-5HaxD2HaxD&EG12-EA
- Architecture: ARM 64bit
- CPU: IPQ-6010
- CPU core count: 4
- CPU nominal frequency: auto (864 - 1800) MHz
- Switch chip model: IPQ-6010
- RouterOS license: 4
- Operating System: RouterOS v7
- Size of RAM: 1 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200000 hours at 25C
- Tested ambient temperature: -40°C to 50°C
- IPsec hardware acceleration: Yes

Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 18-57 V
- Max power consumption: 34 W
- Max power consumption without attachments: 13 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V

PoE-out
- PoE-out ports: Ether2
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 0.6 A
- Max out per port output (input 30-57 V): 0.4 A
- Max total out (A): 0.6 A
- Total output current: 0.6
- Total output power: 22.8

Mobile
- 3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
- 3G bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category: 12 (600Mbps Downlink, 150Mbps Uplink)
- MIMO DL: 4x4
- MIMO UL: 1x1
- LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
- LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- TAC: 86056104

Wireless specifications
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 6
- Wireless 2.4 GHz chip model: QCN-5022
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 1200 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 5.5
- Wireless 5 GHz chip model: QCN-5022
- Wireless 5 GHz generation: Wi-Fi 6

Ethernet
- 10/100/1000 Ethernet ports: 2
- Number of 1G Ethernet ports with PoE-out: 1

Peripherals
Details
Number of SIM slots 1 Modem (Micro SIM)
Other
Details
CPU temperature monitor Yes
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
