OPTIMAL WIFI 6 SPEEDS
- Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streamings, and downloading, all at the same time.

2.5 Gbps MULTI-GIG PORT
- Break through the 1G bottleneck and drive your devices to peak performance.

MORE DEVICES, MORE FUN
- Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

WiFi THAT GOES FARTHER
- 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

OVERALL SECURITY PROTECTION
- The latest WPA3 provides improved WiFi security

GIGABIT WIRED CONNECTIONS
- Make full use of your internet access and transfer data at dizzying speeds for peak performance

ECO-FRIENDLY POWER SAVING
- Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

LESS WIFI INTERFERENCE
- Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

SMART CONNECT
- Intelligently chooses the best available band for each device

Specifications
- WirelessWireless Standards: Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
- WiFi Speeds: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
- Reception Sensitivity
• 11g 6Mbps: -97dBm
• 11g 54Mbps: -79dBm
• 11n HT40 MCS7:-74dBm
• 11n HT20 MCS7:-77dBm
• 11a 6Mbps: -97dBm
• 11a 54Mbps: -79dBm
• 11ac VHT20 MCS8:-75dBm
• 11ac VHT40 MCS9:-71dBm
• 11ac VHT80 MCS9:-67dBm
• 11ax VHT20 MCS11:-67dBm
• 11ax VHT40 MCS11:-64dBm
• 11ax VHT80 MCS11:-61dBm
- Transmission Power
• 2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (band1? band2)
• 5 GHz < 30dBm (band3)
- Wireless Security: WPA / WPA2-Personal, WPA2 / WPA3-Personal
- Wireless Functions: Enable/Disable Wireless Radio, WMM
- HardwareDimensions: 8.2 × 6.8 × 1.6 in (209 × 172.2 × 42.4 mm)
- Interfaces: 1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports
- Button: Reset/WPS Button
- Antenna Type: 8× Fixed Omni-Directional Antennas
- SoftwareWAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
• Access Control
• Local Management
• Remote Management
- DHCP: Server, DHCP Client List
- NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall Security: SPI Firewall, IP and MAC Address Binding
- Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
- VPN Server: OpenVPN, PPTP supported

Others
- Package Contents

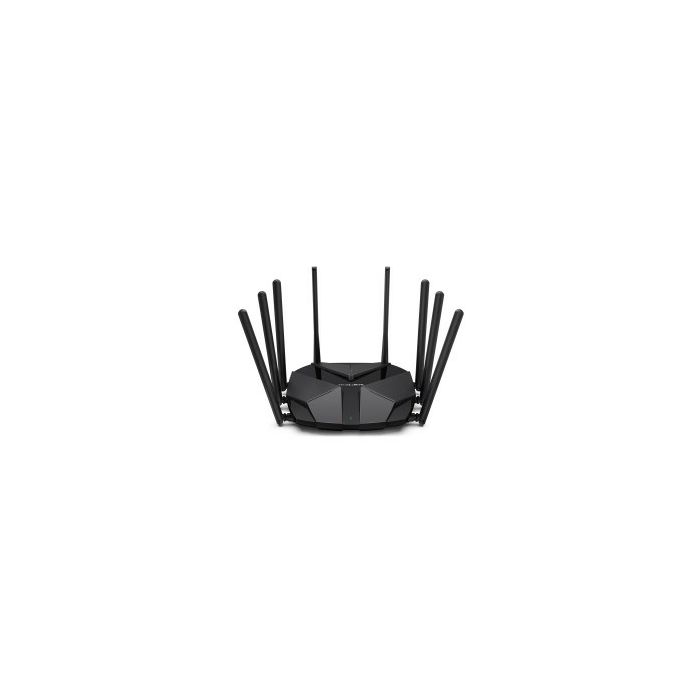

• AX6000 8-Stream Wi-Fi 6 Router MR90X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
- Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
