Dual Band WiFi 6 Speeds up to 3000 Mbps
- 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network
- Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

Whole Home Coverage
- Blanket up to 5,000 ft2 (460 m2) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 150 Devices
- Provide fast and stable connections over 150 devices.

Easily Manage Your Home Network
- Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.

Full Gigabit Ports
- 3× Gigabit ports per Halo unit for lightning-fast wired connections.

Specifications
Wireless
- Wireless Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: 2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
- Reception Sensitivity
- 2.4GHz:
• 11g 6Mbps:-96.5dBm
• 11g 54Mbps:-78dBm
• 11AX HE20 MCS0:-96.5dBm
• 11AX HE20 MCS11:-65dBm
• 11AX HE40 MCS0:-93.5dBm
• 11AX HE40 MCS11:-63dBm
- 5GHz:
• 11a 6Mbps:-96dBm
• 11a 54Mbps:-78dBm
• 11ac VHT20 MCS8:-74.5dBm
• 11ac VHT40 MCS9:-70.5dBm
• 11ac VHT80 MCS9:-66.5dBm
• 11AX HE20 MCS11:-66dBm
• 11AX HE40 MCS11:-63dBm
• 11AX HE80 MCS11:-61dBm
- Transmission Power
• v2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (EIRP)
- Wireless Security : WPA-PSK/WPA2-PSK/WPA3
- Mesh protocol : 802.11k/v/r
- HardwareDimensions : 5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)
- Interfaces : 3× Gigabit Ports per Halo Unit (WAN/LAN auto-sensing)
- Button : Reset button

Software
- Operation Modes: Router, Access Point
- Quality of Service: WMM
- WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management: Local Management, Remote Management, Multi-Managers
- DHCP: Server, Client
- Firewall Security: SPI Firewall
- Protocols: Supports IPv4 and IPv6
- Guest Network
• 2.4 GHz Guest Network,
• 5 GHz Guest Network

Others
Package Contents

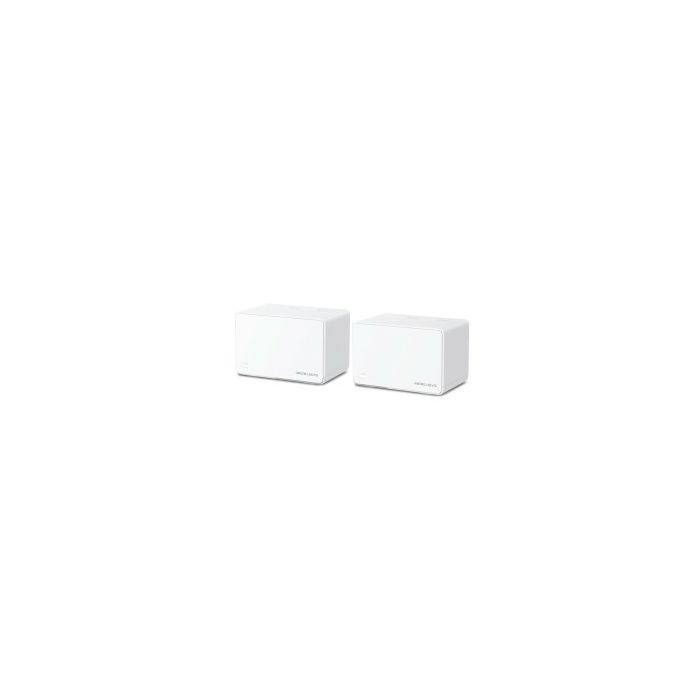

- 2× Halo H80X Units
- 1× RJ45 Ethernet Cable
- 2× Power Adapters
- Quick Installation Guide

Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
