4G network
– Enjoy the 4G LTE download speeds up to 150 Mbps.

Plug a SIM card and play
– No configurations needed, compatibility of SIM cards are assured by years of field tests.

Dual Band 1200 Mbps WiFi
– Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

Simultaneous Connection
– Share internet access with up to 32 Wi-Fi devices.

External Antennas Ports
– Plug in your 4G/3G Antennas to enhance the Network Signal.

Wi-Fi router mode
– Plug an Ethernet cable into the LAN/WAN port for flexible access if you cant get a 4G connection.

Specifications
- WirelessWireless Standards: IEEE 802.11ac/a/b/g/n
- Frequency: 5 GHz, 2.4 GHz
- WiFi Speeds:
• 867 Mbps at 5 GHz
• 300 Mbps at 2.4 GHz
- Reception Sensitivity
• 11g 6Mbps: -95dBm
• 11g 54Mbps: -77dBm
• 11n HT20 MCS7: -74dBm
• 11n HT40 MCS7: -71dBm
• 11a 6Mbps: -92dBm
• 11a 54Mbps: -75dBm
• 11ac VHT20 MCS8: -70dBm
• 11ac VHT40 MCS9: -65dBm
• 11ac VHT80 MCS9: -61dBm
- Transmission Power
• 2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (EIRP)
- Wireless Security: WPA-PSK / WPA2-PSK
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics
- HardwareDimensions: 95×61.05×165.97 mm
- Interfaces
• 1× 10/100Mbps LAN/WAN Port
• 1× 10/100Mbps LAN Port
• 2× 4G/3G External Antenna Ports
• 1× Nano SIM Card Slot
- Button: WPS/Reset Button
- Ethernet Ports:
• 1× 10/100 Mbps LAN/WAN Port +
• 1× 10/100 Mbps LAN

Network Type
- EU:
• FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
• TDD-LTE: B38/B40 (2600/2300 MHz)
• HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
- Software: DHCP Server

Others
- Package Contents

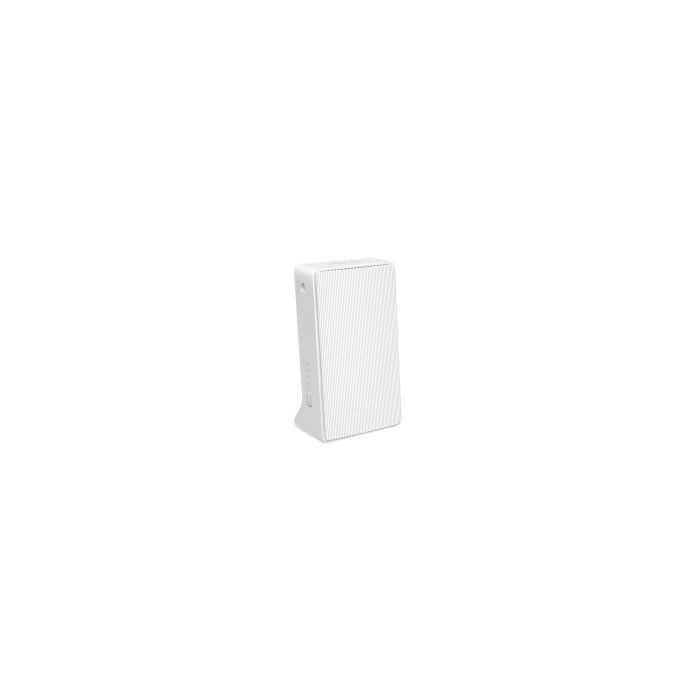

• AC1200 Wireless Dual Band 4G LTE Router (MB130-4G)
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~140°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
