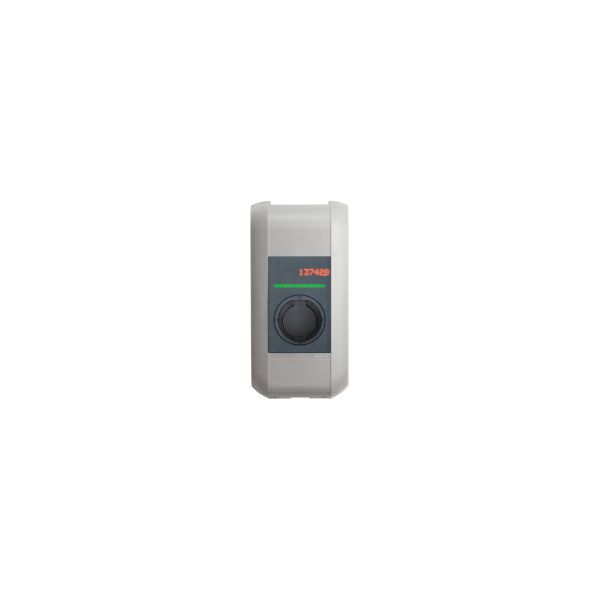

- The communication center for intelligently controlled charging

Features
OCPP COMMUNICATION TO A CENTRAL SYSTEM
- The OCPP communication standard makes controlled charging, monitoring and billing possible

LOCAL LOAD MANAGEMENT
- The x-series can control the charging processes of up to 15 KeContact P30 c-series depending on the energy available

FOR INTEGRATED ELECTROMOBILITY SOLUTIONS
- The "x-series" makes local load management possible: Because of simultaneous charging of multiple electric vehicles, the required energy demand can exceed the available charging capacity
- Load management makes it possible to smooth out the load curve of the connected vehicle by means of time relocation, prioritizing or distribution and prevent expensive peak loads
- Capacities are therefore used in the best possible way, costs reduced in the long-term and resource consumption optimized
- The goal of load management system is to get rid of power peaks and therefore even out the trend of power consumption
- External meter data can easily be read out via Modbus TCP protocol so that the charging processes can, for example, be controlled depending on the house power grid

Specifications
OPERATION
- Maximum charging current per phase: 32A
- Maximum charging power: 22kW
- LED strip for status information: Yes
- DC-leakage detection: Yes
- Power monitoring: Yes
- Enable input / Switch output : Yes
- Display (freely programmable): Yes
- Web interface for configuration settings

COMMUNICATION INTERFACE
- USB interface
- Ethernet interface (RJ45) - Debug
- Ethernet interface for permanent installation (LSA+)
- Charge control by external systems (Smart Home & Energy Management Systems) via UDP and Modbus TCP (passive)
- Dynamic home connection monitoring with an external power meter via Modbus TCP (active)
- OCPP communication as master or standalone
- WLAN communication for the wireless integration of wall boxes in an existing network

LOAD MANAGEMENT
- Master (OCPP, load management)
- Local static or dynamic load management as master

TECHNICAL FEATURES
- DC leakage detection
- Metering
- Enable input
- Switch output
