- Protect your equipment with an uninterruptible power supply against data loss

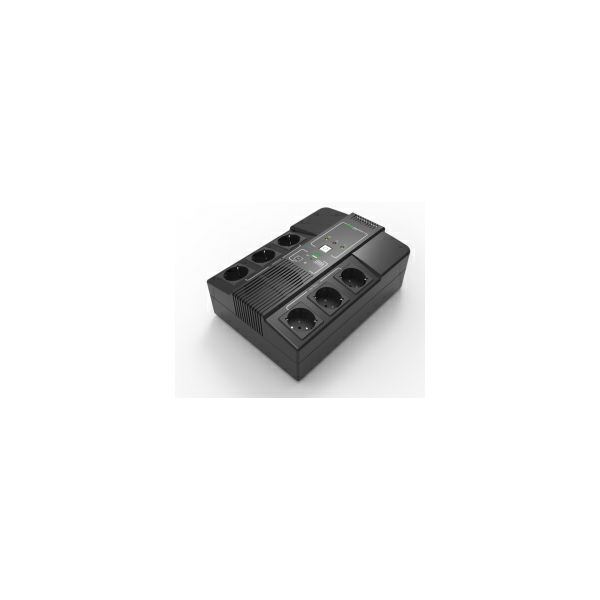

- Multistation 1000 has an output capability of 1000 VA
- This device is mainly designed for domestic multimedia or small office applications
- It provides complete surge protection for critical loads, which are connected directly to protected sockets through the UPS
- It has a Line-interactive technology with pseudo-sinusoidal waveform and a short transfer time of 2ms
- Autonomy time during a black-out is about 10min.
- With its compact design, Multistation 1000 is equipped with 3 schuko outlet protected against power outages and with 3 filtered schuko outlet
- It has also a USB interface for communication and a USB CHARGER output to recharge devices such as mobile phone, tablet or similar

SPECIFICATIONS
INPUT
- Input: Single-phase with GND connection
- Voltage: 220Vac / 230Vac / 240Vac
- Voltage range: 161 - 290 Vac
- Connections: 1× IEC

OUTPUT
- Output: Single-phase with GND connection
- Voltage Tolerance (Battery Mode): +/-10%
- Frequency: 50 Hz
- Frequency Tolerance (Battery Mode): +/-1 Hz
- Waveform: Modified sinusoidal
- Connections:
* 3× Schuko (UPS)
* 3× Schuko (By-pass)

BATTERY
- Battery Voltage: 12VDC
- Quantity of battery: 1
- Type: 12V/9AH battery sealed lead-acid, maintenance-free
- Recharge time: 6-8 hours at 90% after deep discharge

VISUAL INDICATORS
- AC Mode: Green LED On
- Battery Mode: Yellow LED flashing
- Failure: Red LED On

ACOUSTIC ALARMS
- Backup Mode: A Beep every 10s
- Low Battery: A Beep every 1s
- Overload: A Beep every 0.5s
- Failure: Continuous beep

USB CHARGER
- Typical: 5.0V / 1.0A Max

SWITCHING TIME
- Typical: 2-6 ms

PROTECTIONS
- Complete: Against discharge, overcharging, overload + input fuse

AMBIENT
- Operating Temperature: 0°C to 40°C
- Noise: < 40dB

MECHANICAL
- Dimensions (W×D×H): 202×290×91 mm
- Weight: 4.2 kg

Accessories included in the package
- Instructions Manual
- Input Cable (IEC)
- RJ45 Cable
