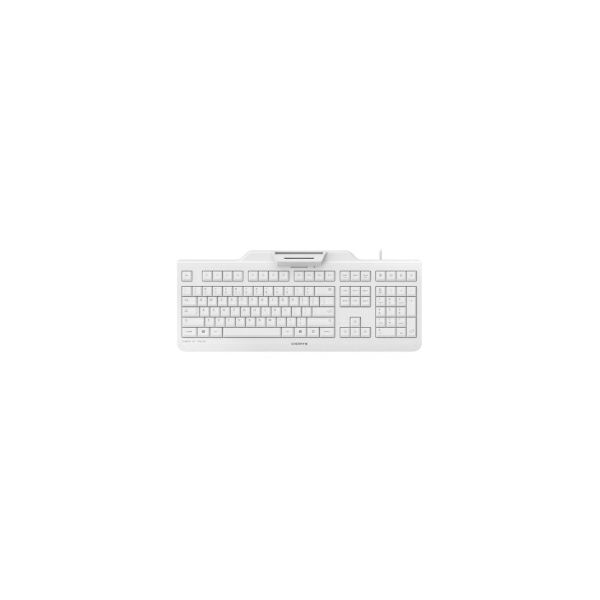

- Security keyboard with integrated smart card terminal
- Lasting reliability. Timeless elegance. Intelligent concept
- KC-1000SC combines the benefits of a classic Cherry office keyboard with the security-related requirements of a security keyboard

Features
- Smart, wired security keyboard with integrated chip card terminal
- Secure PIN entry
- PC/SC smartcard reader
- Protocols: T=0, T=1, S=8, S=9, S=10
- EMV 2000 Level 1 approved
- CCID compatible
- Reading/writing ISO 7816 compliant smartcards
- Flat design, low smart card contacting unit
- Satisfies requirements defined by FIPS-201
- Driver support for Windows/MacOS-X/Linux
- One-handed operation of smart card module
- German version complies with BGI 650 guidance for ergonomics
- Awarded the "Blaue Engel" environmental seal

Specifications
- Key technology: LPK
- Service life, standard key: > 10 million key operations
- Number of Keys: Product dependant, see table
- Reliability: MTBF > 45.000 hours
- Interface: USB
- Operating temperature: 0C to 50C
- Storage temperature: -20C to 65C
- Cable length: approx. 1.80 m
- Dimensions: approx. 458×188×46 mm
- Weight: approx. 840 g

SMART CARD READER
- Type: Mechanical
- Hardware interface: USB
- Agency Approvals: EMV 2000 Level 1
- Chip-card protocols: T=0, T=1, S=8, S=9, S=10
- Contact: mechanical swipe reader
- Software interface: CT-Api, PC/SC
- Mating cycles: approx. 100,000 operations
- Compatible chip card types: Reads and writes on all ISO 7816 cards
- Transmission speed reader <==> card: 420 kBit/s
- Transmission speed reader <==> system: max. 12 MBit/s
- Chip card pulse frequency: 4.8 MHz
